Dynamic Media (Image)

Prerequisites
  • Enable the extension named Custom Asset Picker for AEM in the Extension Manager.
  • Environment should have the config files for remote repo. (The config files for image and video picker come as part of reference demo installation package and are available at location /content/dam/config/)

Below are the typical steps to follow for Smart Crop to work with Dynamic Media (Image):

  1. Create Image profile for smart crops.
  2. Apply the profile on the folder on which you need to generate smart crop renditions.
  3. Reprocess the assets if the asset already existing or upload new assets.
  4. After processing completes -> Open Image Properties and set “Review Status” to Approved and then publish the assets. This step is needed for the image to reach the Delivery Server of DM Open API.
  5. It may take 2-5 mins for smart crop renditions of the asset to be available on DM OpenAPI.

Authoring :

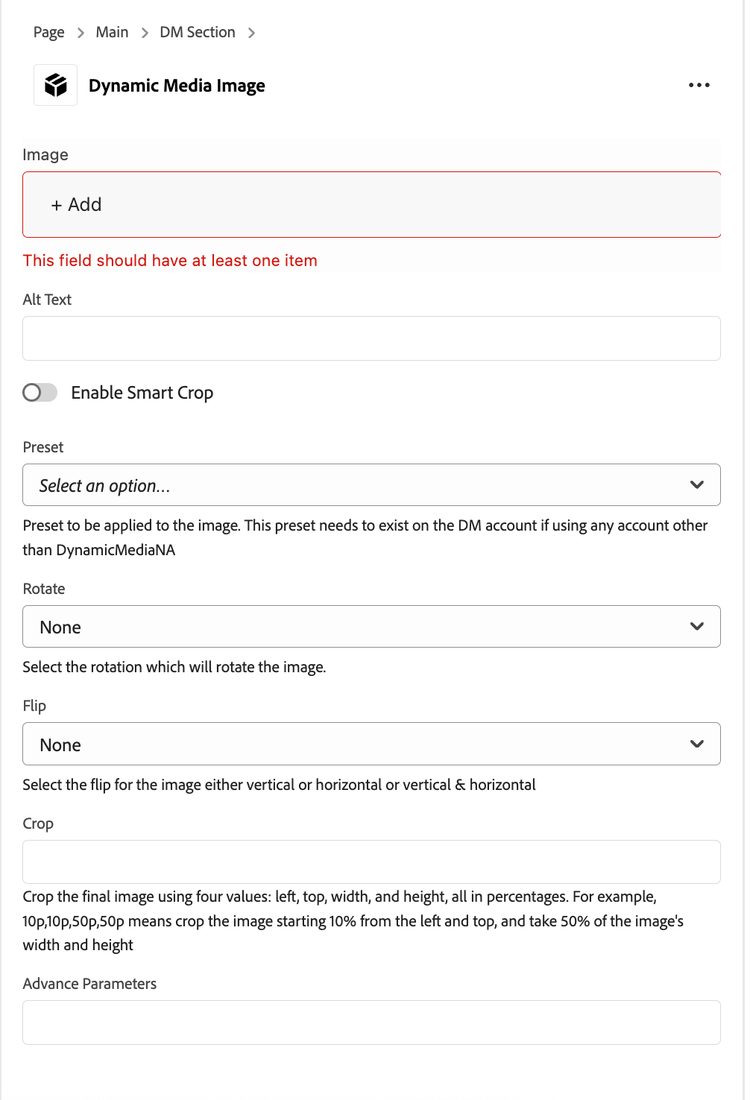

  1. Add “Dynamic Media (Image)” block to your page and edit block’s properties.
  1. Click on asset selector which will open asset picker.
  1. You can also author other modifiers e.g. Flip, Rotate, Preset etc.
You will see remote repo listed if you have image.config.json file present at location /content/dam/config/image.config.json and the extension for custom asset picker enabled
  1. Select any delivery server from the Repository dropdown. (preferably the remote repo named “AEM XSC Showcase Program dev delivery”).
  2. Select the asset. Once asset is selected it will render on the page.
  3. You have below properties to configure:
    • Default (Asset Background): Text overlays the image.
    • Asset Left / Asset Right: Asset (image or video) and text are side-by-side.
    • Asset Top / Asset Bottom: Asset stacked above or below text.
    • Asset -Background Text-Left / Text-Right: Asset as background; text aligned left or right.
    • Enable Smart Crop: This option will enable smart crop on the asset.
    • Preset: You can select the presets available from this drop down. Some presets may have additional configuration which will be enabled once preset is selected.
    • Rotate: You can select the rotation from the drop down.
    • Flip: You can select the flip direction from the drop down.
    • Crop: Crops the image using four values: left, top, width, and height, all in percentages. For example, 10p,10p,50p,50p means crop the image starting 10% from the left and top, and take 50% of the image's width and height
    • Advance Parameters : For manually entering advance modifiers for the image. e.g. brightness=80 etc. These can be generated from the dynamic media snapshot page.
    • DM Playground : Toggle an icon that will appear on the right top corner of the image for redirecting user to the snapshot page. The loaded snapshot page will have the image
